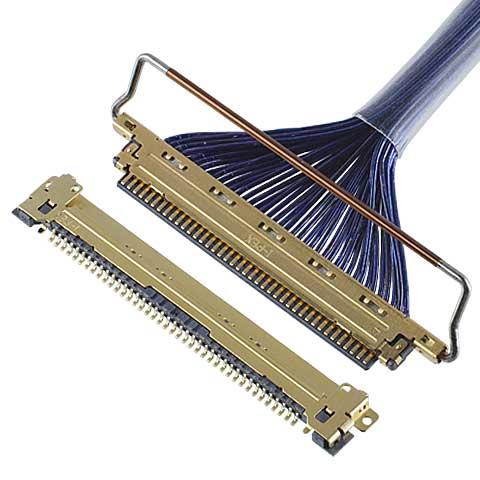

I-PEX 0.5mm Pitch 20454 Series Extremely Fine Coaxial Connector is a 0.5mm pitch, horizontal mating style, mechanical locking Extremely Fine Coaxial Connector, Ideal for high speed transmissions within electronic devices USB4 / Thunderbolt 4 (20 Gbps/lane), Mechanical locking prevents connector from incomplete mating/non-mating and disengagement. I-PEX VS series connectors are available in a wide range of sizes, Pitch (mm): 0.500, Height: 1.10 Max (1.00 Nom.), Number of Pins available: 20 30 40 50, Extremely Fine Coaxial (AWG): #36 #38 #40 #42 #44 #46, Insertion Type: Horizontal Extremely Fine Coaxial Connector.
1, I-PEX 0.4mm pitch 20634 Series with Mechanical Latch Extremely Fine Coaxial Wire Connectors Key product details:
Ideal for high speed transfers within electronic devices USB4 / Thunderbolt 4 (20 Gbps/lane).
Mechanical latch prevents incomplete mating/non-mating and disconnection of connectors.
I-PEX VS Series connectors are available in the following variants.
------------------------------------------------------------------------------------------------
2, I-PEX 0.5mm pitch 20454 series very fine coaxial line connector technical parameters:
------------------------------------------------------------------------------------------------
3, I-PEX 0.5mm pitch 20454 Series Extremely Fine Coaxial Wire Connectors Main Model/Number:

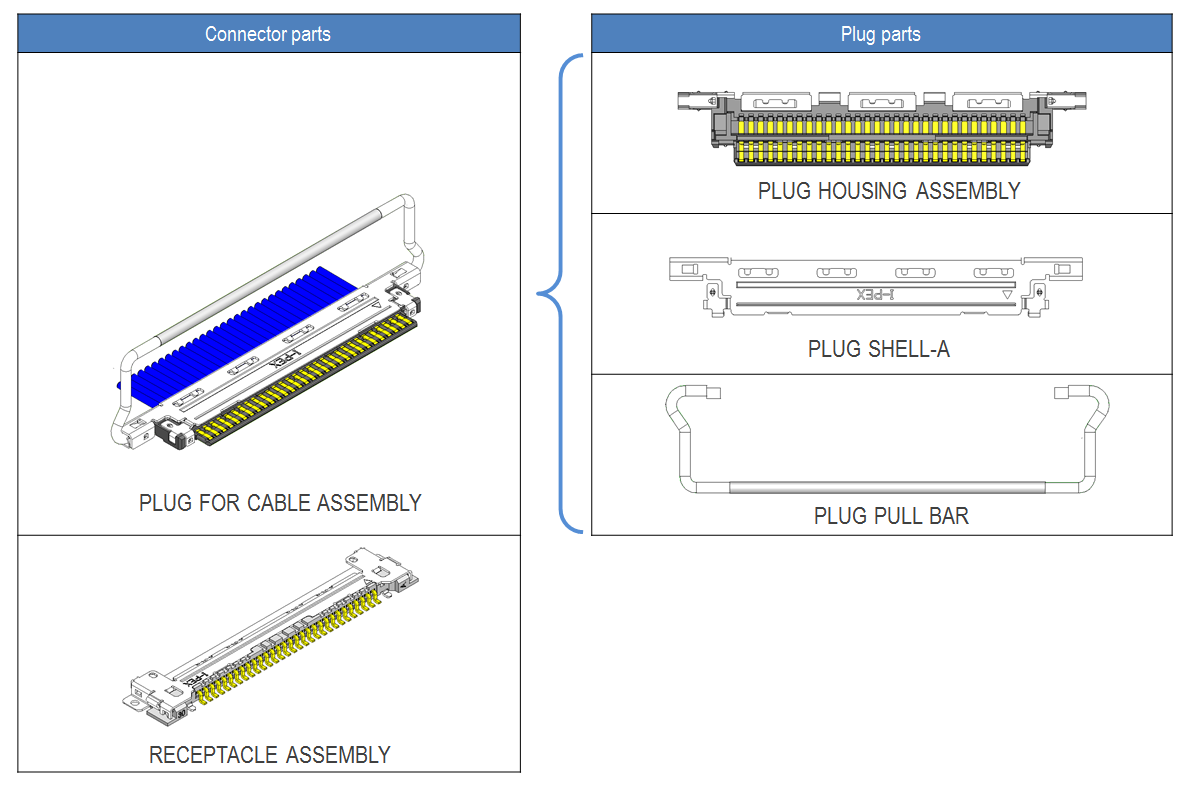

CABLINE-VS RECOMMENDED PART NUMBERS
| Part Number Description | Pin count | Part Number | |
| PLUG FOR CABLE ASSEMBLY | 20 | 20453-220T-03 | |
| 30 | 20453-230T-03 | ||
| 40 | 20453-240T-03 | ||
| 50 | 20453-250T-03S | ||
| Plug parts | PLUG HOUSING | 20 | 20454-220T |
| 30 | 20454-230T | ||
| 40 | 20454-240T | ||
| 50 | 20454-250T-01 | ||
| PLUG SHELL | 20 | 2574-0202 | |
| 30 | 2574-0302 | ||
| 40 | 2574-0402 | ||
| 50 | 2574-0502 | ||
| PLUG PULL BAR | 20 | 2576-120-00 | |
| 30 | 2576-130-00 | ||
| 40 | 2576-140-00 | ||
| 50 | 2576-150-00 | ||
| RECEPTACLE | 20 | 20455-A20E-76 | |
| 30 | 20455-030E-76 | ||
| 40 | 20455-040E-76 | ||
| 50 | 20455-050E-76 | ||
------------------------------------------------------------------------------------------------
