Compatible/Replacement Molex|Molex Connectors|Molex|Molex Connectors|78171/78172 Series Connectors 2P~7P|1.2mm Pitch WTB Connector Product is a: 1.20mm mm terminal pitch wire-to-board connector; The Pico-EZmate Ultra Slim Connector System introduces a lower mating height of only 1.20mm to provide customers with the speed needed for pick and place operations and higher circuit size variants through multiple test cycles. customers the speed needed for pick-and-place operations, as well as higher circuit size variants that pass multiple test cycles; the Pico-EZmate Plus connector system, with current ratings up to 2.8A and improved pull-out force, offers high performance at thin heights in a compact 1.00mm pitch, making it an ideal choice for automating the assembly process in narrow pitch applications in a variety of industries; its key features and benefits. Key features and benefits are: Vertical mating: provides quick and easy mating without misorientation or failure to mating, Polarity key: prevents mismatching, Open top socket head: Snap-in mating for fast assembly and processing, Ultra-thin mating height: Easy to install, saves vertical space, and open space on head: Good for pick and place.[3A Electronic Network offers Molex|Molex Connectors|Molex|Molex Connectors|78171/78172 Series Connectors 2P~7P|1.2mm Pitch WTB Connector Male and Female Block Replacement].
------------------------------------------------------------------------------------------------

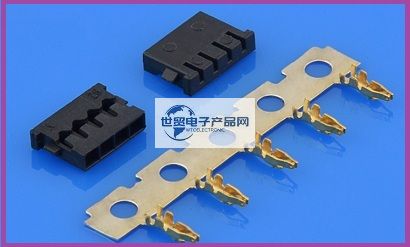

1, Compatible/Replacement for Molex|Molex Connector|Molex Connector|78171/78172 Series Connector 2P~7P|1.2mm Pitch WTB Connector Male and Female Block products related specifications:
| 参考信息： | 物理参数： |
| 对配器件：插头外壳（202654） | 外壳：LCP工程塑料，阻燃等级为UL94V-0，黑色 |
| 对配插座底座（202656） | 接点：铜合金 |
| 配套器件：插头端子（202655） | 电镀：镀金 |
| 配合插头外壳（202654） | 工作温度：-25至85摄氏度 |
| 所用端子： | 机械参数： |
| 设计计量单位：毫米 | 接点插入力（更大值）：14.7牛 |
| 是否符合RoHS标准：符合 | 接点对外壳的抓握力（最小值）：3.5牛 |
| 是否无卤：低卤 | 对配力（更大值）：18牛 |
| 是否符合灼热丝标准：否 | （第1次、第3次和第10次） |
| 电气参数： | 拔脱力（最小值）：3.5牛、1.5牛、1.2牛 |
| 电压（更大值）：50伏 | （第1次、第3次和第10次） |
| 电流（更大值）：2.5安（AWG 28） 和2.0安（AWG 30） | 可插拔次数（最小值）：10次 |
| 接触电阻（更大值）：20毫欧：5毫欧（压接部位） | |
| 介质耐电压：500伏交流 | |
| 绝缘电阻（最小值）：100兆欧 |
