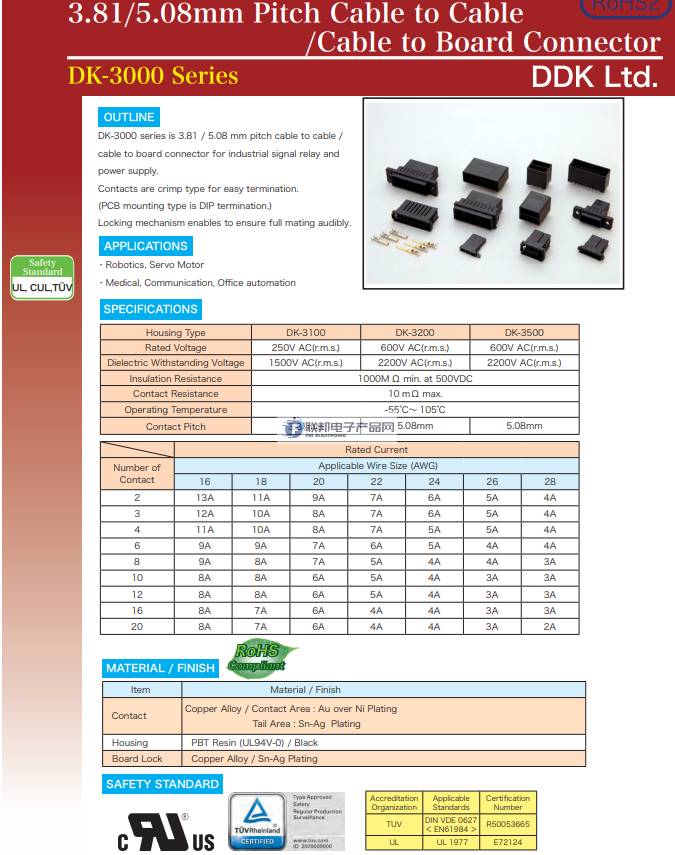

DDK|DDK Connectors|NIPPON ELECTRONICS DK-3000 series connectors for mating wires and substrates are developed for use with industrial equipment signals. There are various types of connectors for connecting mating wires and mating wire substrates. In addition, it is easy to connect the wires by pressing the wires to install the substrate type and dip soldering. You can hear the sound of the locking bracket clicking into place when you connect the machine.
| 该系列产品的电气性能一般规格为： | |||
| 項目 | DK-3100 | DK-3200 | DK-3500 |
| 额定电压 | AC250V(r.m.s) | AC600V(r.m.s) | |
| 耐电压 | AC1,500V(r.m.s)/1分钟 | AC2,200V(r.m.s)/1分钟 | |
| 绝缘电阻 | DC500Vで1,000MΩ以上 | ||
| 接触电阻 | 10mΩ以下 | ||
| 使用温度範囲 | -55℃～105℃ | ||
| 中心针间距 | 3.81mm | 5.08mm | |
1, DDK | DDK Connectors | Nippon Electronics DK-3000 Series Mating Wire Substrate Connector main product specification details:
| 特征: |
| ●FA机器（机器人、伺服马达 其他） |
| ●医疗机器、通信机器、OA机器其他的各种电器设备 |
------------------------------------------------------------------------------------------------
2, Japan DDK | DDK connectors | Japan Electronics DK-3000 series with the wire substrate with the connector main material number / type:
| DK-3100S-03RX | DK-3100S-04HX | DK-3100D-12P | DK-3200S-02RY | DK-3200S-04VY-FA |
| DK-3100S-04RX | DK-3100S-05HX | DK-3100D-16P | DK-3200S-03RY | DK-3200S-05VY-FA |
| DK-3100S-05RX | DK-3100S-06HX | DK-3100D-20P | DK-3200S-04RY | DK-3200S-06VY-FA |
| DK-3100S-06RX | DK-3100S-08HX | DK-3100D-06F | DK-3200S-05RY | DK-3500D-02R |
| DK-3100S-08RX | DK-3100S-10HX | DK-3100D-10F | DK-3200S-06RY | DK-3500D-04R |
| DK-3100S-10RX | DK-3100S-03VY | DK-3100D-12F | DK-3200S-02PX | DK-3500D-06R |
| DK-3100S-03PY | DK-3100S-04VY | DK-3100D-16F | DK-3200S-03PX | DK-3500D-10R |
| DK-3100S-04PY | DK-3100S-05VY | DK-3100D-20F | DK-3200S-04PX | DK-3500D-12R |
| DK-3100S-05PY | DK-3100S-06VY | DK-3100D-06H-FA | DK-3200S-02FY | DK-3500D-20R |
| DK-3100S-06PY | DK-3100S-08VY | DK-3100D-10H-FA | DK-3200S-03FY | DK-3500D-12P |
| DK-3100S-08PY | DK-3100S-10VY | DK-3100D-12H-FA | DK-3200S-04FY | DK-3500D-20P |
| DK-3100S-10PY | DK-3100D-06R | DK-3100D-16H-FA | DK-3200S-02HX-FA | DK-3500D-12F |
| DK-3100S-03FY | DK-3100D-10R | DK-3100D-20H-FA | DK-3200S-03HX-FA | DK-3500D-20F |
| DK-3100S-04FY | DK-3100D-12R | DK-3100D-06V-FA | DK-3200S-04HX-FA | DK-3500D-12H-FA |
| DK-3100S-05FY | DK-3100D-16R | DK-3100D-10V-FA | DK-3200S-05HX-FA | DK-3500D-20H-FA |
| DK-3100S-06FY | DK-3100D-20R | DK-3100D-12V-FA | DK-3200S-06HX-FA | DK-3500D-12V-FA |
| DK-3100S-08FY | DK-3100D-06P | DK-3100D-16V-FA | DK-3200S-02VY-FA | DK-3500D-20V-FA |
| DK-3100S-10FY | DK-3100D-10P | DK-3100D-20V-FA | DK-3200S-03VY-FA | DK-3RECSST1−4000 |
| DK-3100S-03HX |
------------------------------------------------------------------------------------------------
3, Japan DDK - DDK | Japan Electronics DK-3000 series with wire substrate with connectors This product seller:
3A Electronic Network-agent sales 【Japan DDK connectors-DDK | Japan's first electronic DK-3000 series with the wire substrate with connectors】and the contents of the second item in the table list of all (material number / model number) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way. If you want to buy or know what connectors | harness | cable product solutions we can provide, welcome to contact us through the following way. -Agent sales [Japan DDK connectors - DDK | Japan's first electronic DK-3000 series with wire substrate with connectors] as well as the contents of the second item in the table list of all (No./Model) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way. -Agent sales [Japan DDK connectors - DDK | Japan's first electronic DK-3000 series with wire substrate with connectors] as well as the contents of the second item in the table list of all (No./Model) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way.
