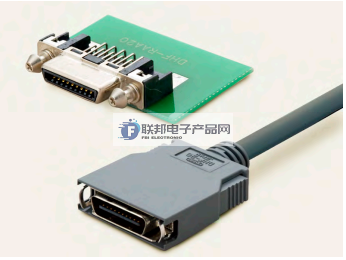

DDK|DDK Connectors|NIPPON DAIYO ELECTRONICS DHF Series Thin Half Pitch I/O Connectors are thin crimp connectors with EMI countermeasures to match half pitch (1.27mm) interfaces for miniaturization of electronic devices and high-density multi-pole use.
| 该系列产品的电气性能一般规格为： | |
| 额定电压：AC250V（r.m.s.） | 绝缘电阻：采用DC500V 500MΩ以上 |
| 额定电流：0.5A／接点 | 接触电阻：35mΩ以下 |
| 耐电压 ：DC500V(r.m.s.) 1分钟 | |

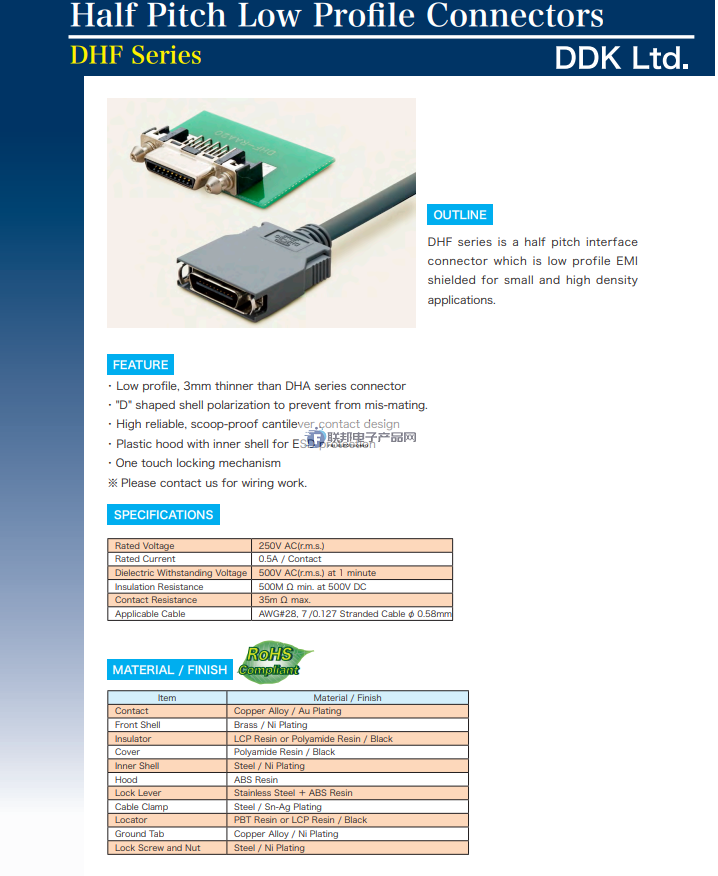

1, DDK | DDK Connectors | Nihon Electronics DHF Series Thin Profile Half Pitch I/O Connectors main product specification details:
| 特征: |
| ●与DHA系列（半间距连接器）相比厚度大约变薄3mm。 |
| ●接点的嵌合面为台形形状，具备防止误插入构造，即便是插反时，也不会同另一侧接点出现导通现象。 |
| ●接点采用悬臂方式，能够强有力的卡阻，稳定的接触。 |
| ●塑料机罩内侧采用内隔板，提高密封性，具备ESD对策。 |
| ●同另一侧连接器的锁定，由于采用快速锁定结构，因此，容易脱离 |
| ●结线使用专业工具，可以做到聚集压接。 |
------------------------------------------------------------------------------------------------
2、Japan DDK|DDK Connectors|Japan Electronics DHF Series Thin Profile Half Pitch I/O Connectors Main Part Number / Model Number: .
| DHF-PDA10-3-A01-FA | DHF-RAA10-131NB-FA | DHF-RAA10-131NB-FA | DHF-RAA10-111NB-FA | DHF-RAA10-211NB-FA |
| DHF-PDA20-3-A01-FA | DHF-RAA20-131NB-FA | DHF-RAA20-131NB-FA | DHF-RAA20-111NB-FA | DHF-RAA20-211NB-FA |
| DHF-PDA10-1-A01-FA | DHF-RAA10-231NB-FA | DHF-RAA10-133NB-FA | DHF-RAA10-233NB-FA | DHF-RAA10-231NB-FA |
| DHF-PDA20-1-A01-FA | DHF-RAA20-231NB-FA | DHF-RAA20-133NB-FA | DHF-RAA20-233NB-FA | DHF-RAA20-231NB-FA |
------------------------------------------------------------------------------------------------
3, Japan DDK - DDK | Japan Electronics DHF series thin half-pitch I / O connector This product seller:
3A Electronic Network-agent sales [Japan DDK connectors-DDK | Japan Electronics DHF series thin half-pitch I / O connectors] as well as the contents of the second item in the table list of all (material number / type) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way.
