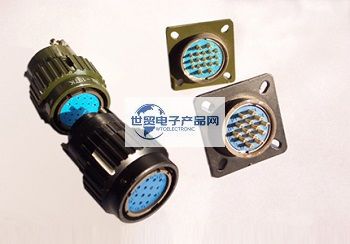

Y50 circular electrical connectors must be terminated with attention to matters

Y50 round electrical connector termination, the operator should strictly implement the termination specifications or requirements of the commonly used termination table to carry out termination and checking, and carry out termination in accordance with the corresponding contact number. The thin insulation layer between the selected cable conductors should be compatible with the spacing between the contacts, and the cable core should be compatible with the terminals of the contacts. When connecting wires between disconnect switches, the stranded diameter of the multi-stranded core should be considered, and it is prohibited to cross-connect wires between contact crimp holes.
Welding should be based on the bare wire diameter to choose the appropriate power soldering iron, each contact welding time is generally less than 5 s. Care should be taken not to let the flux penetrate the insulator to prevent the lowering of the insulation resistance of the goods.
When selecting a crimping method, it should be noted that only the contacts of the circular electrical connectors, wires, crimping tools and crimping procedures can be controlled to ensure crimping quality.
Before clamping the harness, the tail attachment should be torqued exactly, otherwise the threads of the housing and tail attachment will be easily destroyed in use.
If you use anti-rotation device (anti-rotation key, etc.) to connect the tail attachment. The tail attachment should be aligned with the anti-rotation device in the plug or socket, otherwise the anti-rotation function will be lost and the electrical connector and tail attachment may be destroyed.

---------------------------------------------------------------------------------------------------
